Feature: ZL series is new design air cooler improved on D series air cooler.

Adopting high efficiency aluminum fins and copper tube with diameter φ 9.52mm or φ 14mm.

Dividing into 3 series ZLH, ZLM and ZLL depend on the different fin space suit to different room temperature demand.

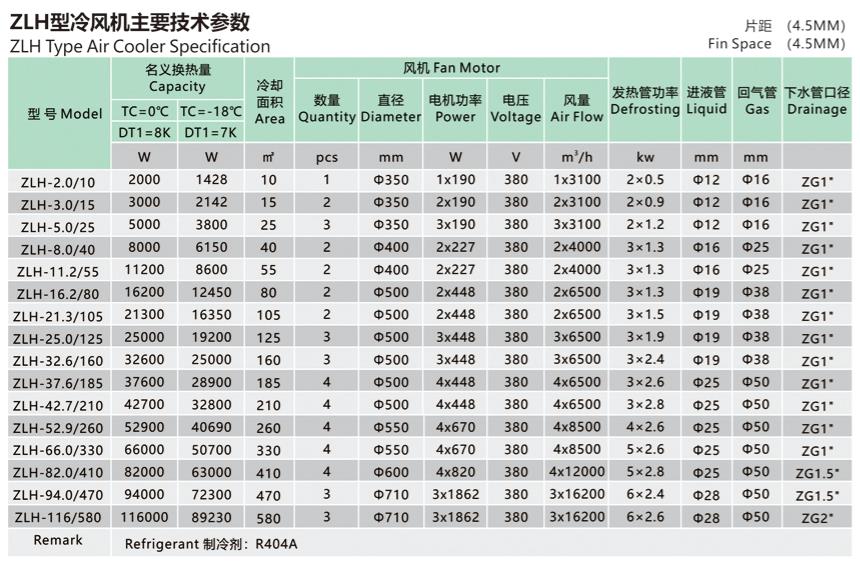

ZLH for fresh storage with temperature at +5 to +15 ℃,

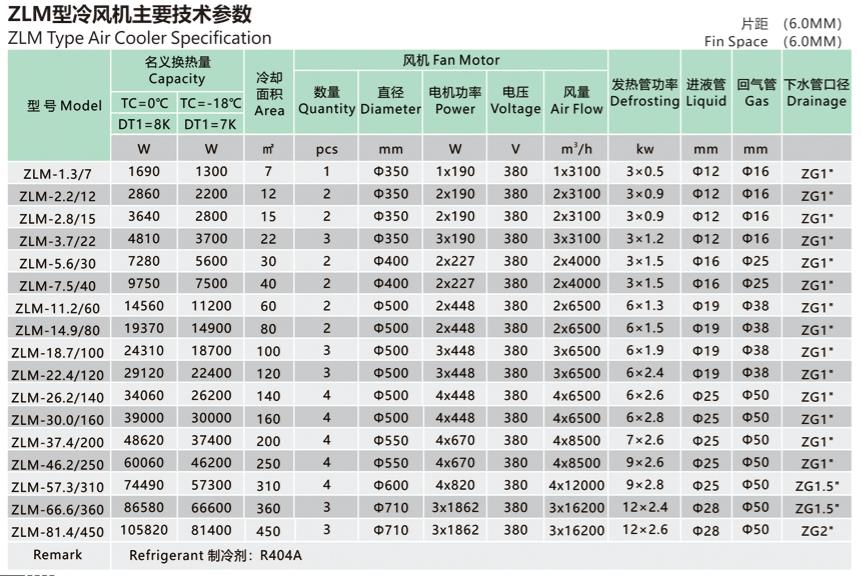

ZLM for refrigerated storage with temperature at -15 to -20 ℃,

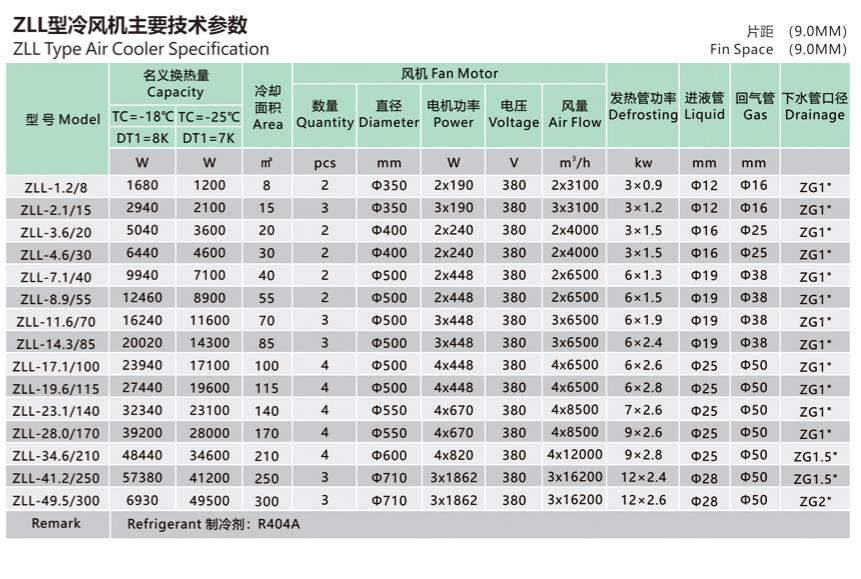

ZLL for freezer room with temperature at <-25 ℃.

Advantages:

1.Two sides end plate and water drain plate design into open type for maintenance conveniences.

2.Front shell with inner concave design looks very nice, Overall shell with multi-folded design make high strength and less vibration.

3.Copper pipeline is optimized re-design for high heat exchange efficiency.

4.Assembling axial fan motor with high efficiency, low energy consumption suit to complex environments.

5.φ7mm copper tube can be choose which make heat exchange much more fast.
